Details

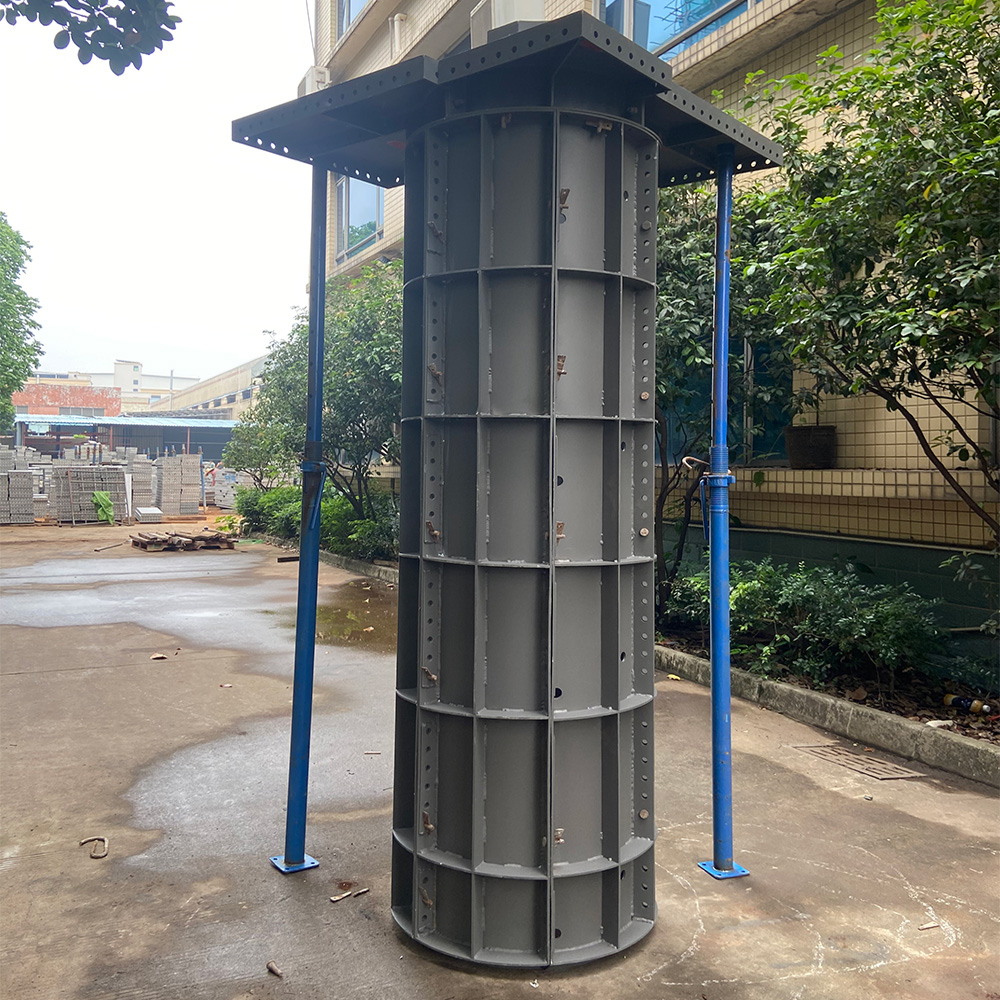

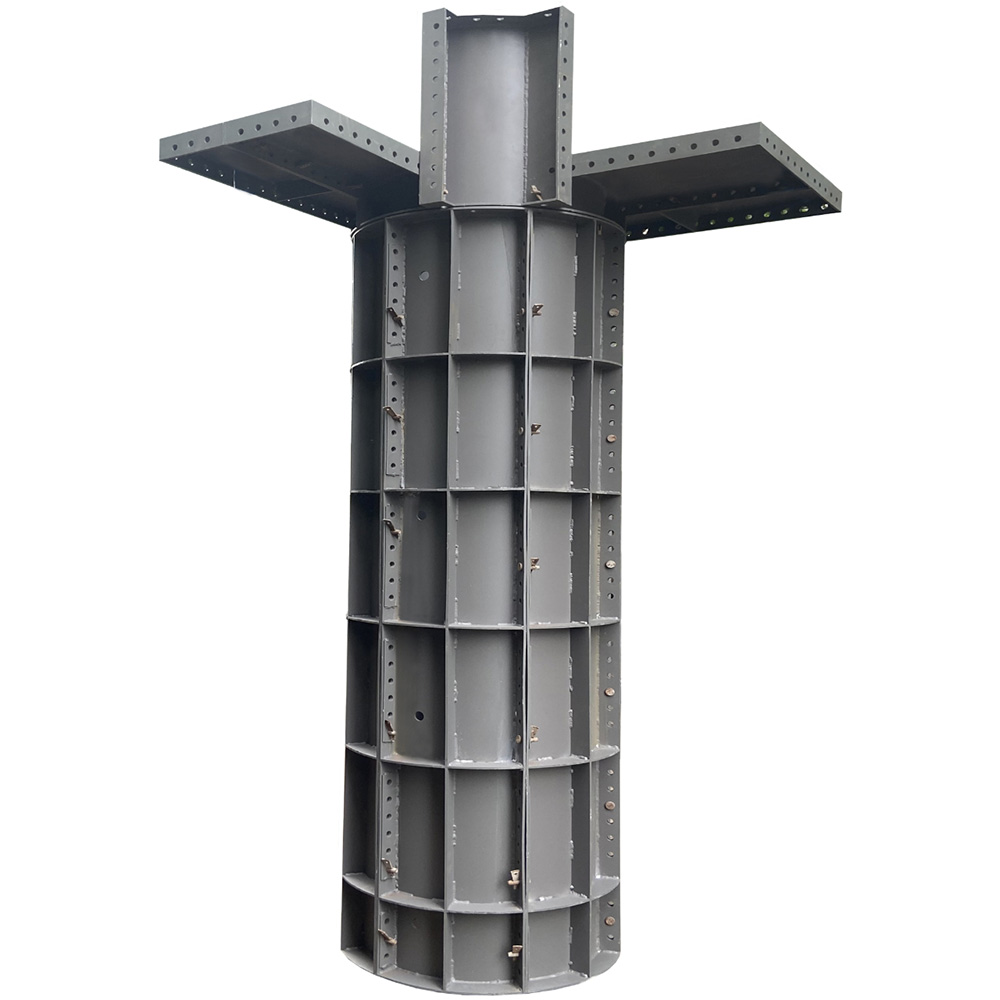

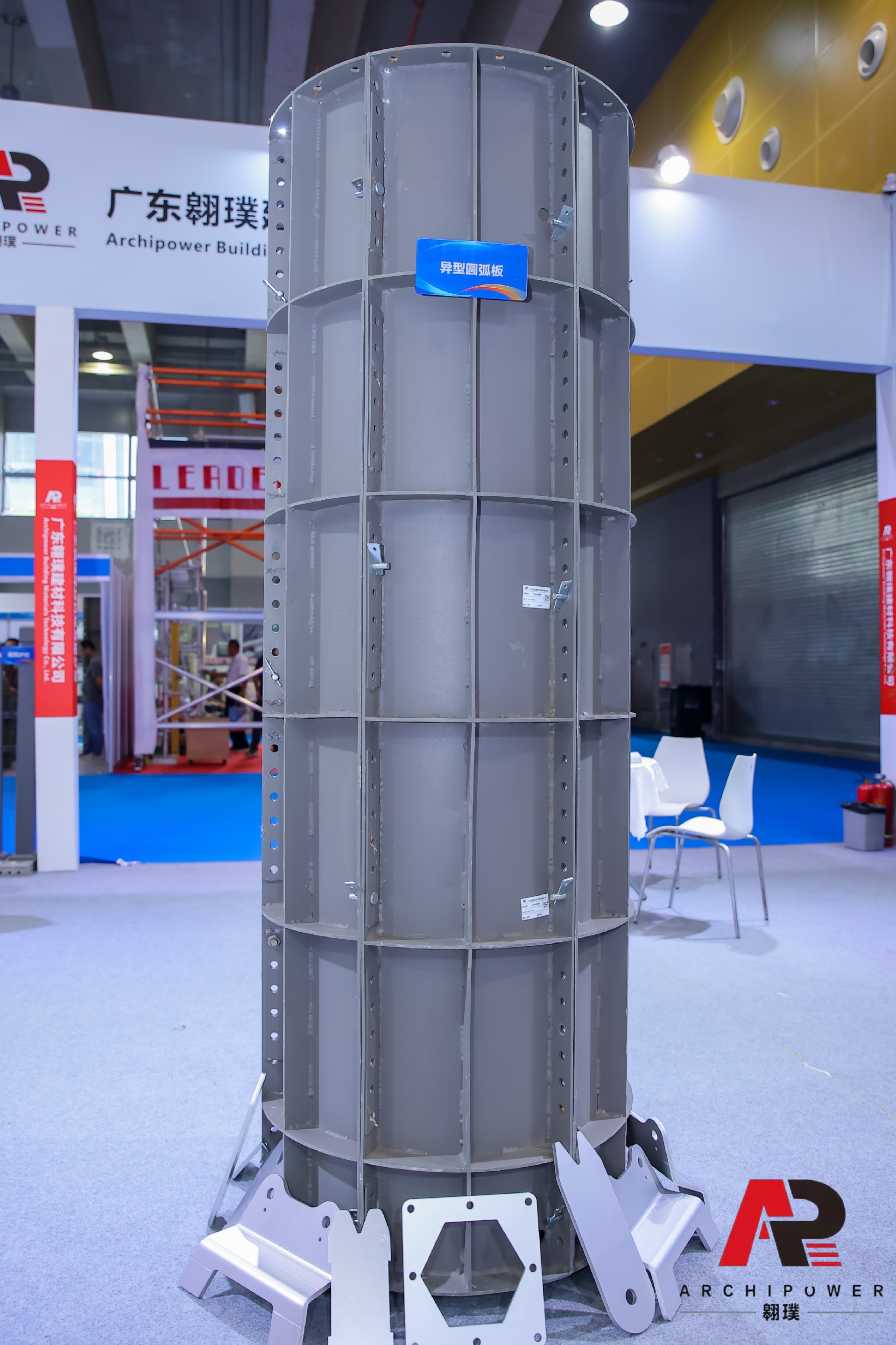

Archipower Aluminum Alloy Column Formwork System is an innovative construction solution primarily made of 6061-T6 aluminum alloy, specially designed for concrete pouring in column structures.

Main Components

• Bolts and nuts

• Safe pouring platform

• Aluminum curved panels

Advantages

• High Reusability

Highly durable and capable of multiple reuse cycles, reducing construction costs.

• Stable Quality

High strength and corrosion resistance ensure the quality and stability of column concrete structures.

• Eco-Friendly

High recyclability aligns with green building and sustainable development principles.

• High Construction Efficiency

Quick assembly and disassembly shorten project timelines and enhance productivity.

Material : 6061-T6 aluminum alloy

Process : Extruded profiles

Material Thickness : 4mm

Type : Circular Column

Weight：21-23 kg/m²

Surface Finish : Mill finish or spray coating

Reuse Cycles : ≥300

Shape : Square column, circular column, or customized

Standard Cylinder Sizes : 300, 350, 400, 450 (customizable)

Fabrication Processes : Drilling, bending, welding, precision cutting, punching, etc.

Standards : EN755-9, GB/T 6892-2015,  GB5237.1-2008, JGJ 386-2016

Packaging : Standard pallets with stretch film, or customized as required

Application

As a key supporting material for prefabricated buildings, the aluminum column formwork system meets the demanding dimensional and precision requirements of prefabricated components, significantly improving assembly efficiency.With its notable advantages of being lightweight yet high-strength, highly corrosion-resistant, easy to process and install, high precision, and environmentally friendly, Archipower's architectural aluminum column formwork system holds broad application potential in high-rise buildings, prefabricated structures, and buildings with special architectural designs.

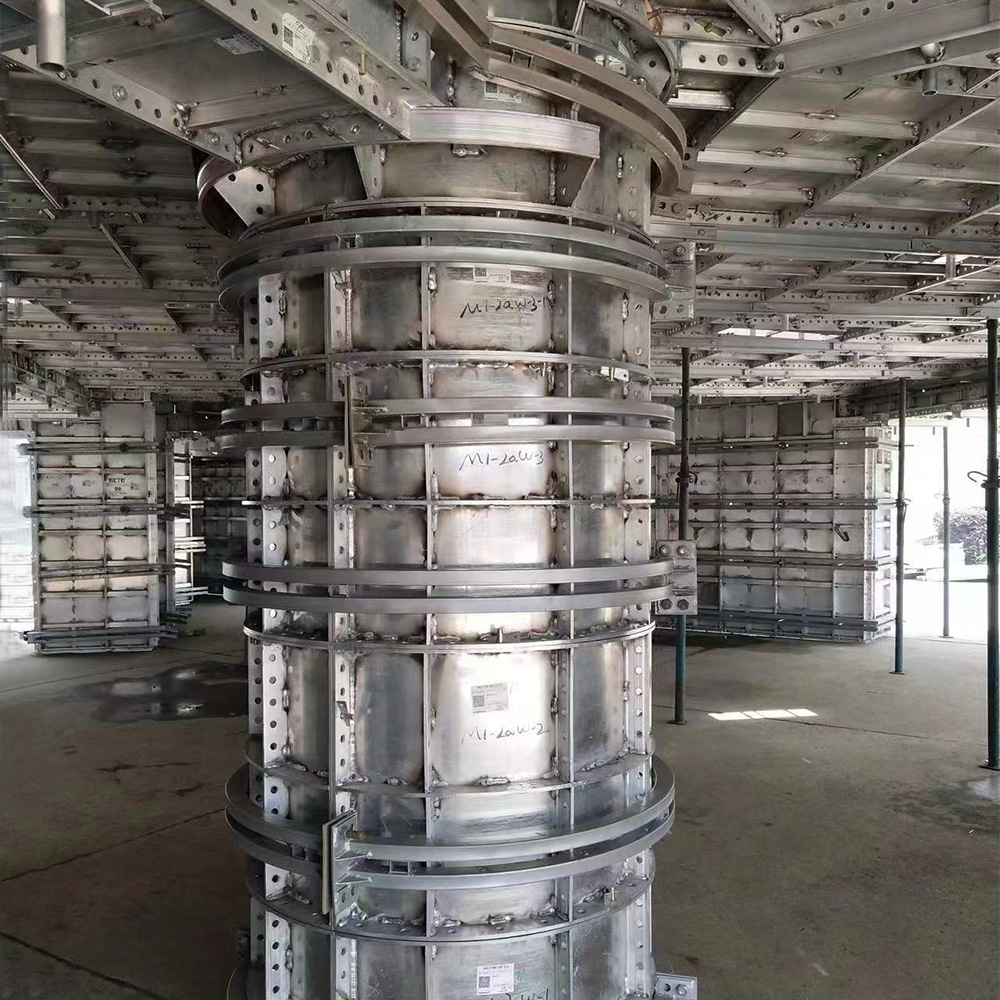

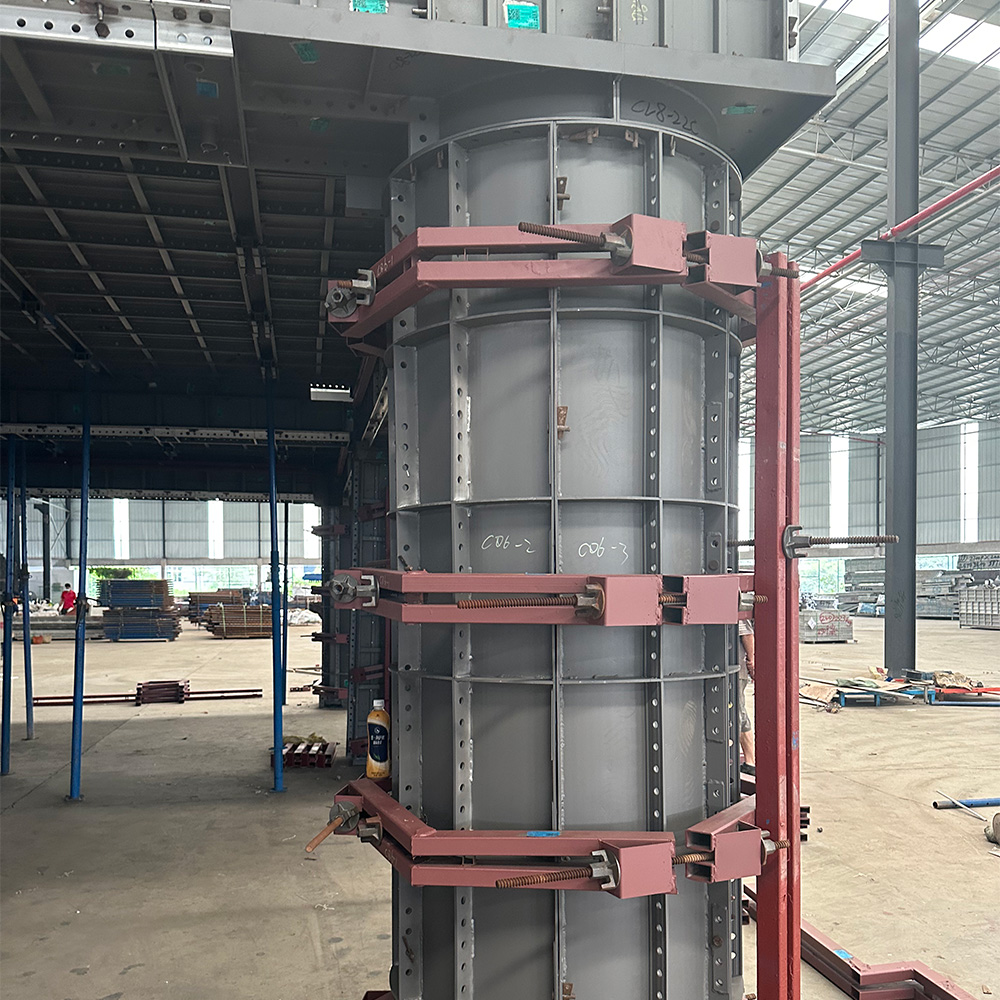

• Columnar Concrete Structures

The aluminum column formwork system is primarily suitable for casting columnar concrete structures in construction, such as circular columns, cylindrical pillars, and square columns.

• Other Structures


Beyond cylindrical structures, the aluminum column formwork system can also be customized and adapted for concrete casting of other shapes and structural forms. For buildings with special structural requirements, such as large-span or irregularly shaped structures, the aluminum column formwork system can be custom-processed to meet these specific construction needs.
