Details

Archipower Aluminum Alloy Column Formwork System is an innovative construction solution primarily made of 6061-T6 aluminum alloy, specially designed for concrete pouring in column structures.The Archipower column formwork (vertical) system features adjustable dimensions and requires no crane operation, enabling easy manual handling. The flexible column cross-section design allows for easy size adjustments without disassembly, offering portability and rapid assembly.

Its features include:

• Equipped with concrete platforms to ensure safety, flexibility, and cost-effectiveness.

• Capable of producing columns with various heights and diameters, ensuring easy erection and adjustment.

• Designed to withstand high pressure during rapid concrete pouring.

• Cross-sections and heights can be adjusted quickly and easily with minimal variables and fewer components, a key factor in cost efficiency. Additionally, the system can be rapidly relocated for reuse in projects with identical cross-section requirements, eliminating reassembly work.

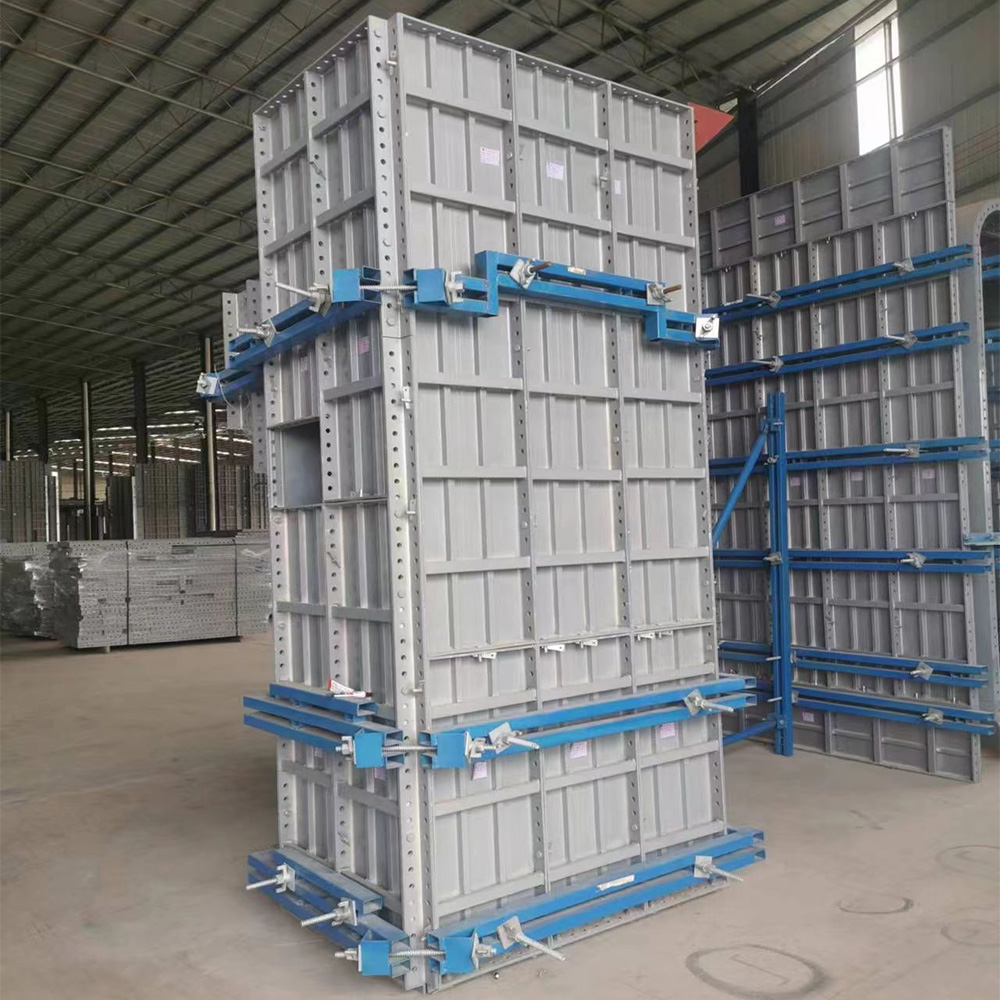

Main Components

• Custom aluminum panels

• Connectors: pins and wedges, hollow profiles, tie rods or flat ties

• Steel props

• Adjustable braces

Advantages

• High Reusability

Exceptional durability supports multiple reuse cycles, reducing construction costs.

• High Construction Efficiency

Rapid assembly and disassembly shorten project timelines and enhance productivity.

• Stable Quality

High strength and corrosion resistance ensure quality and stability of column concrete structures.

• Eco-Friendly

High recyclability aligns with green building and sustainable development principles.

Material : 6061-T6 aluminum alloy

Process : Extruded profiles

Material Thickness : 4mm

Type : Column Formwork

Weight : 21-23 kg/m²

Surface Finish : Mill finish or spray coating

Reuse Cycles : ≥300

Shape : Square column

Standard Cylinder Sizes :  300, 350, 400, 450 (customizable)

Fabrication Processes : Drilling, bending, welding, precision cutting,punching, etc.

Standards : EN755-9, GB/T 6892-2015, GB 5237.1-2008,JGJ386-2016

Packaging : Standard pallets with stretch film, or customized as required

Application

As an essential supporting system for modern construction, Archipower aluminum column formwork meets stringent dimensional and precision requirements while significantly improving on-site assembly efficiency. Combining lightweight strength with excellent corrosion resistance, easy processing, and environmental sustainability, our formwork system delivers reliable performance across diverse architectural applications.

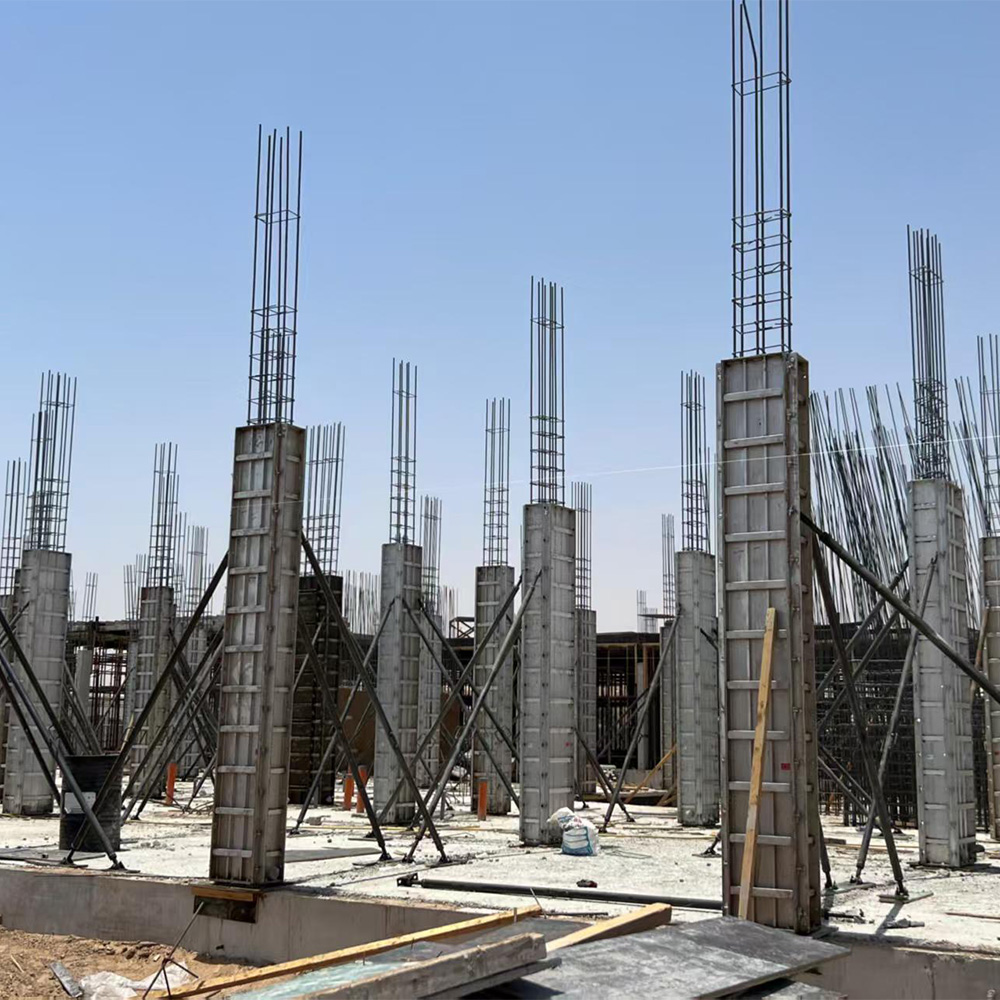

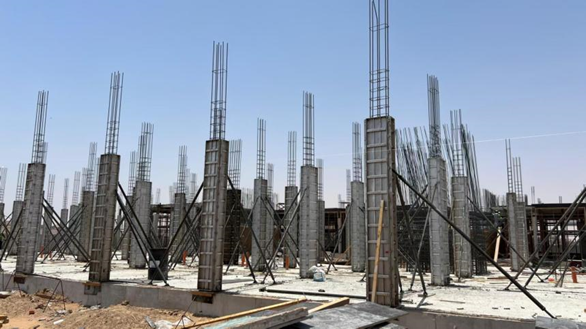

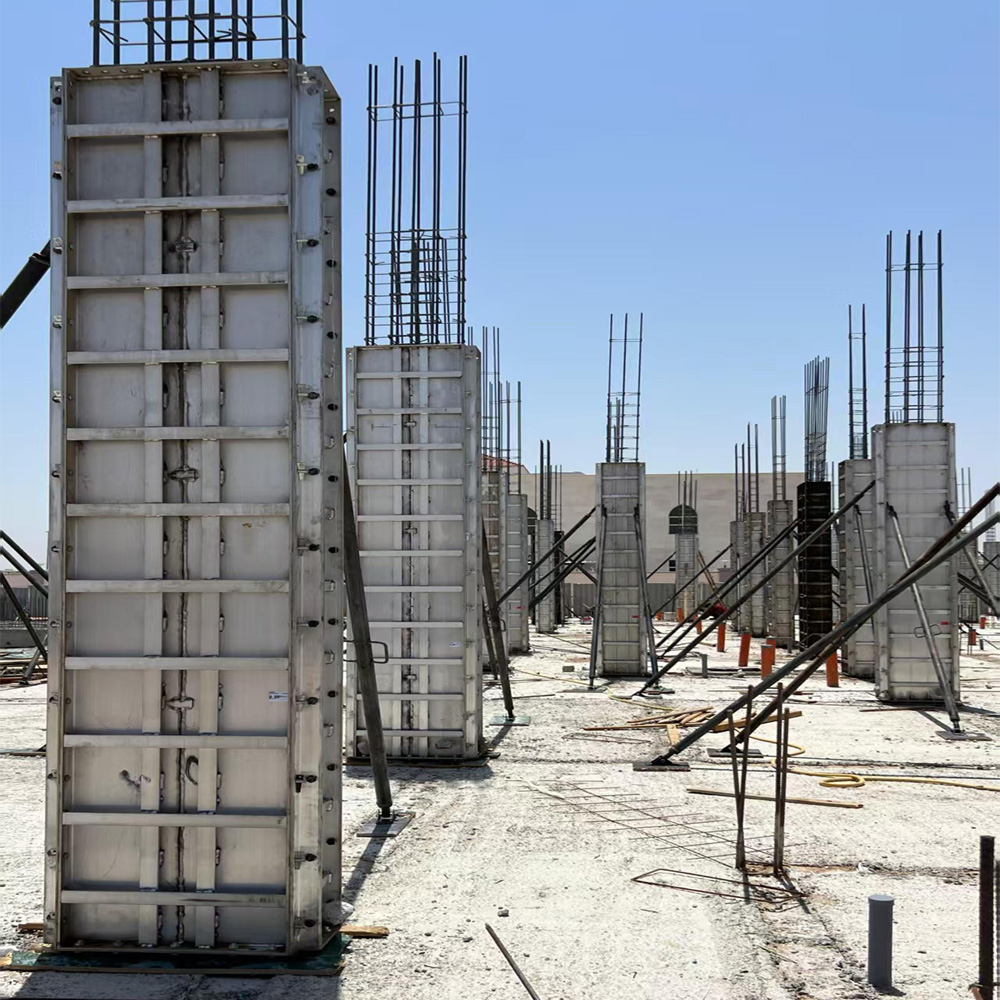

• Square & Rectangular Columns

Engineered for standard square and rectangular concrete columns in building structures, ensuring consistent dimensions and superior surface quality for structural stability and architectural aesthetics.

• Typical Project Applications


1. High-rise building structures

2. Commercial and office complexes

3. Residential tower frameworks

4. Industrial facilities and parking structures

5. Public and institutional buildings

Through integrated technical support and modular configuration, Archipower column formwork provides precision-engineered solutions for projects requiring efficiency and reliability in vertical concrete construction.
